Description:

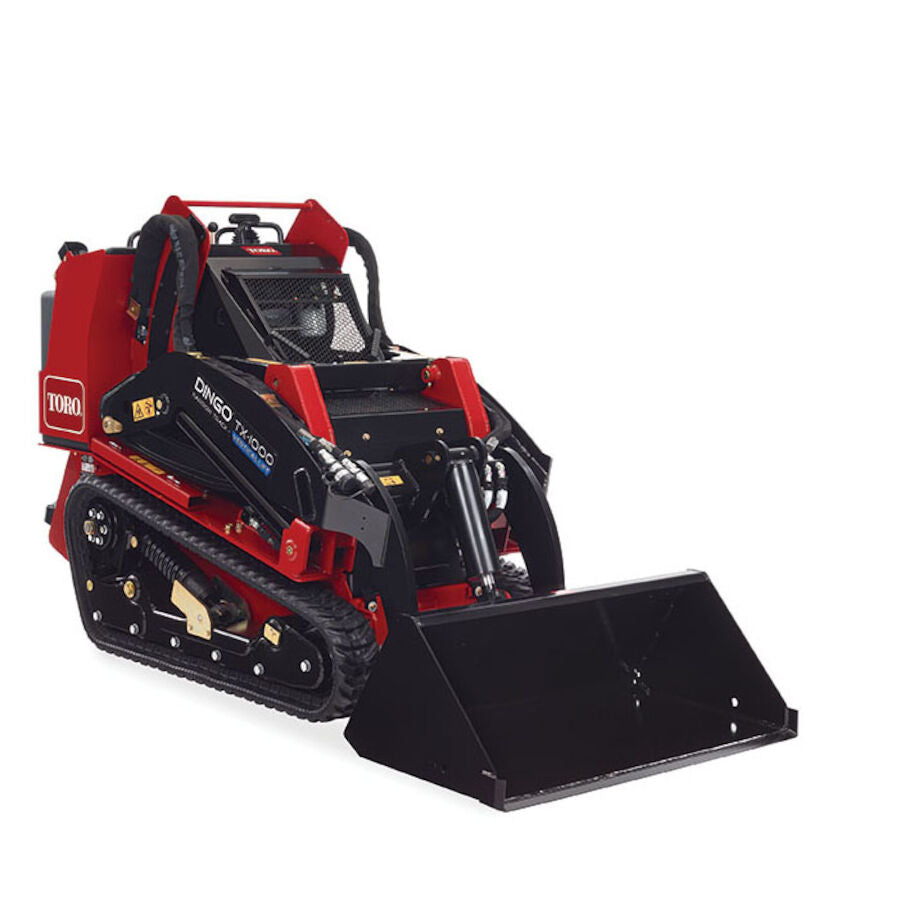

Use this standard bucket for moving rock, dirt, sand or other materials off and around the job site. The hardened steel cutting edge offers improved cutting and digging capability for better performance to handle tough digging conditions and affords superior wear. Capacity = 4 cubic feet (1 cu. m.).

Specification:

• Models Compatible:
• Dingo TX 1000
• Dingo TX 1000 TURBO
• Dingo TX 700
• Mounting Frame:
• Dingo® Quick-Attach Mount Plate
• Fabricated, Welded Base
• Construction: Fabricated, Welded Steel Frame
• Product Type: Attachment (Bucket)
• Dimensions
• Width: 41 in. / 104.1 cm
• Length: 23 in. / 58.4 cm
• Height: 15 in. / 38.1 cm
• Weight: 172 lbs / 78 kg
• Capacity
• Heaped Capacity: 5.3 ft³ / 0.15 m³
• SAE Struck Capacity: 4.3 ft³ / 0.12 m³
